S Scale 27 R RAMPS for Grade Crossing on Lionel(AF) 27R 2-rail Curved Fastrack system

S Scale RAMPS for Grade Crossing on Lionel(AF) 27R 2-rail Curved Fastrack system

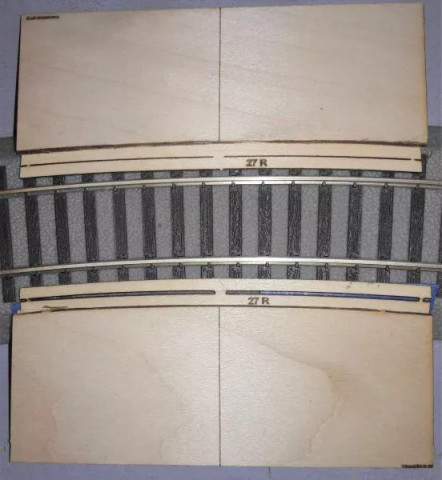

Railroad Crossing roadway ramps (MRGS8127Ramp) for Lionel (American Flyer) S scale (1:64)

  Buy Track & Ramps together for an awesome layout.

See our other items

Laser Cut/Engraved Wood Plank Grade Crossing Roadway Ramp kit (MRGS-8127Ramp) these are RAMPS only, crossing is a separate kit ,

See other auction and additional photos.

Track not included

Curved. Cut planks, engraved nail/bolt detail. Specifically designed for LIONEL(R) S American Flyer Fastrack.

However, should fit any similar "S" Gauge (1:64 or 3/16 scale) 2 rail track curved 27"radius section with 0.148" rail height. 4.6" long or 25.5 scale ft.

Wide enough for two traffic lanes.

Shims included to raise center to track bolt level and position top boards below rails so not to obstruct power pickup (wheel contact).

Suggestions for installation

To install on flex track carefully curve track to fit crossing and adjust to insure flange space is proper.

Allows for proper wheel flange clearance. Laser cut to proper fit on all rails.

Easy installation, length adjusted to fit with tie spacing, nail detail will line up with ties when crossing end is placed with crossing end aligned with edge of a tie.

This places nail (bolt) details in center of ties under crossing.

Ready for you to weather to your satisfaction and has a Real Railroad Prototypical Appearance.

Stain or color to your choice or leave natural when installed.

See photos of installations.

Covers ties and provides an edge to stop scenery, road surface without fouling track.

Installs easily with any type of glue, following instruction on header card.

You must add the between rails crossing to these ramps(see our NEW product listing for these) or other scenic road way to each side of the crossing.

These ramps and crossings may be used in any S Scale standard gauge (Narrow Gauge to follow) application, the crossings are laser cut to clear wheel flanges and may be use with any rail from .090 to .148+ in height. Shim provided (0.040) will provide a total crossing height of 0.130+ and clear any rolling stock operated on 0.148 rail.

Use the crossing itself with any thickness shim for other rail height from 0.090 up, add the ramps with or without shims to add roadway.

For scale code 100 rail, just don't use the shims. Bottom edges of crossing may need to be sanded back to clear spikes and tie plates.

Product included makes

 one (1) set (pair) of roadway ramps for crossing (single track) with 2 roadway (auto) lanes.

We make other S scale crossings and O Scale crossings for the LIONEL (R) Fastrack system and ramps for all.

Custom work can be done for special installations.

 Multiple purchases are fine, mix or match style/radius OK, shipping will calculate accordingly.

Thanks for your order.

Check my other items & auctions for bulk packages and other radius or straight crossings, order extras and save on freight cost.
